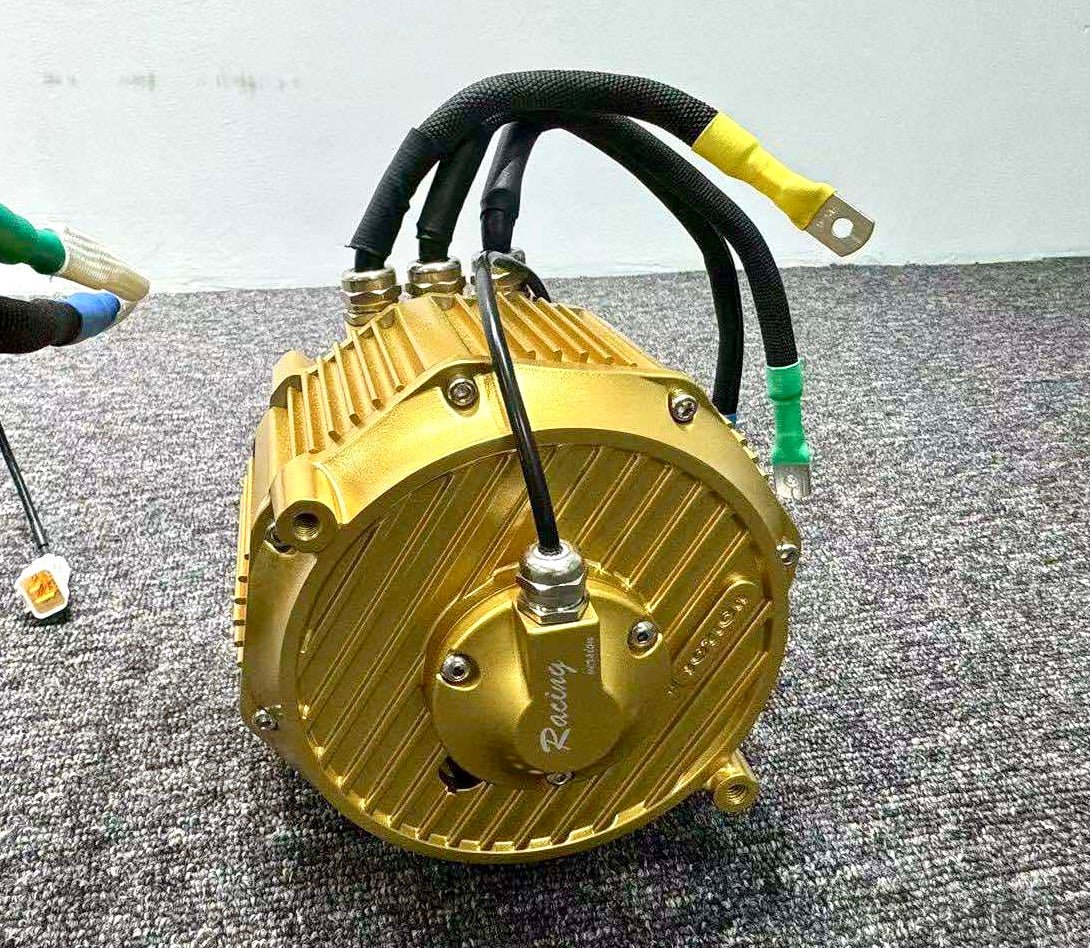

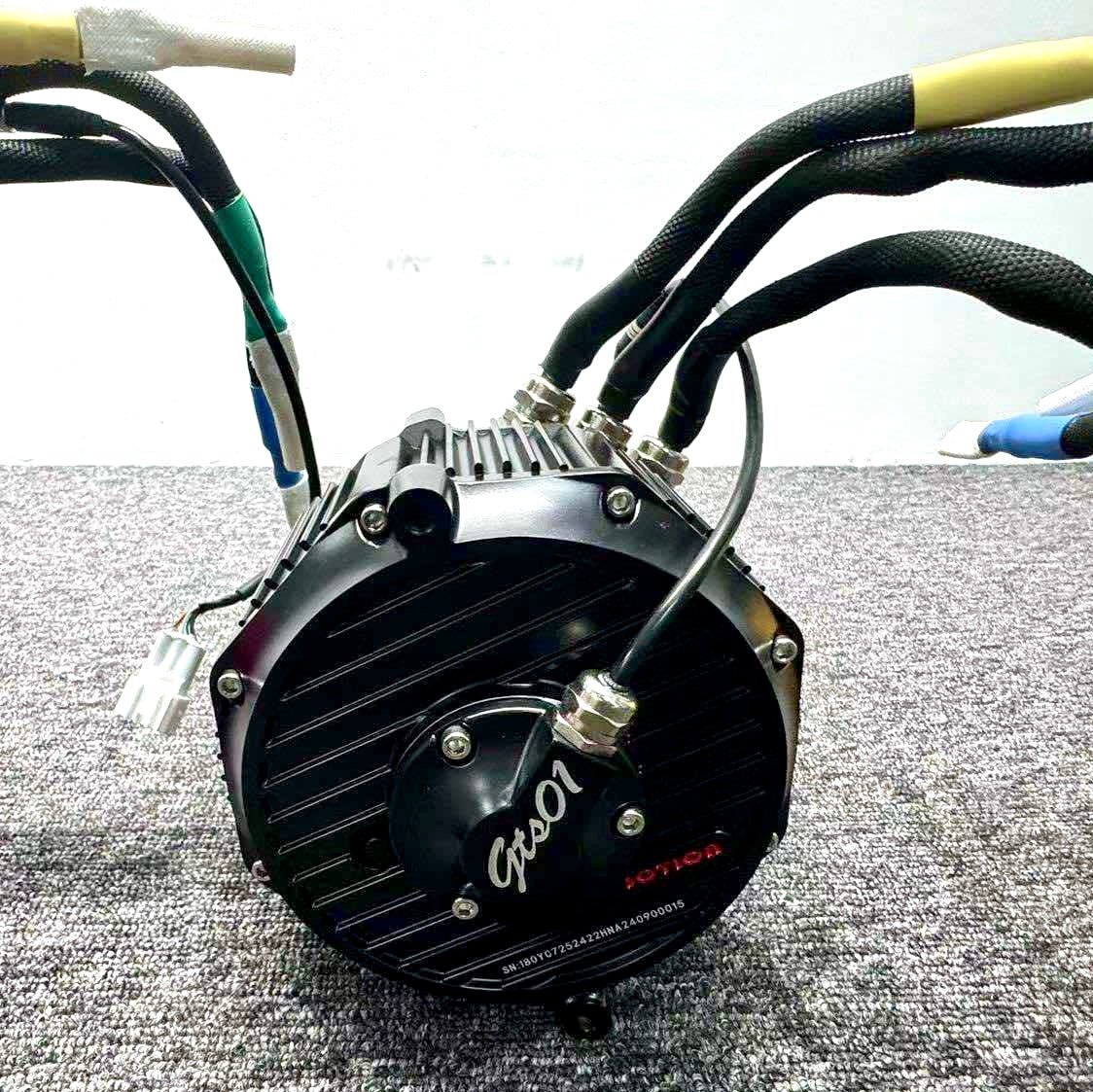

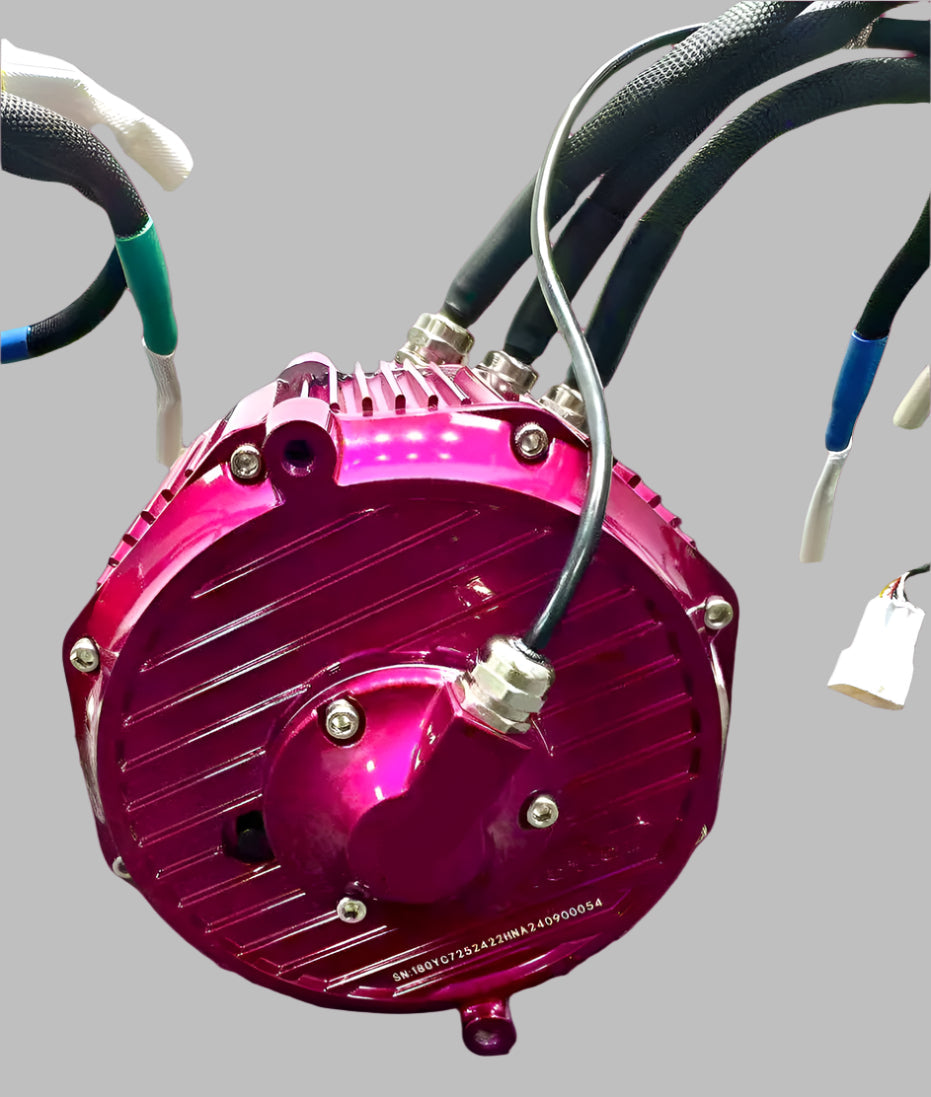

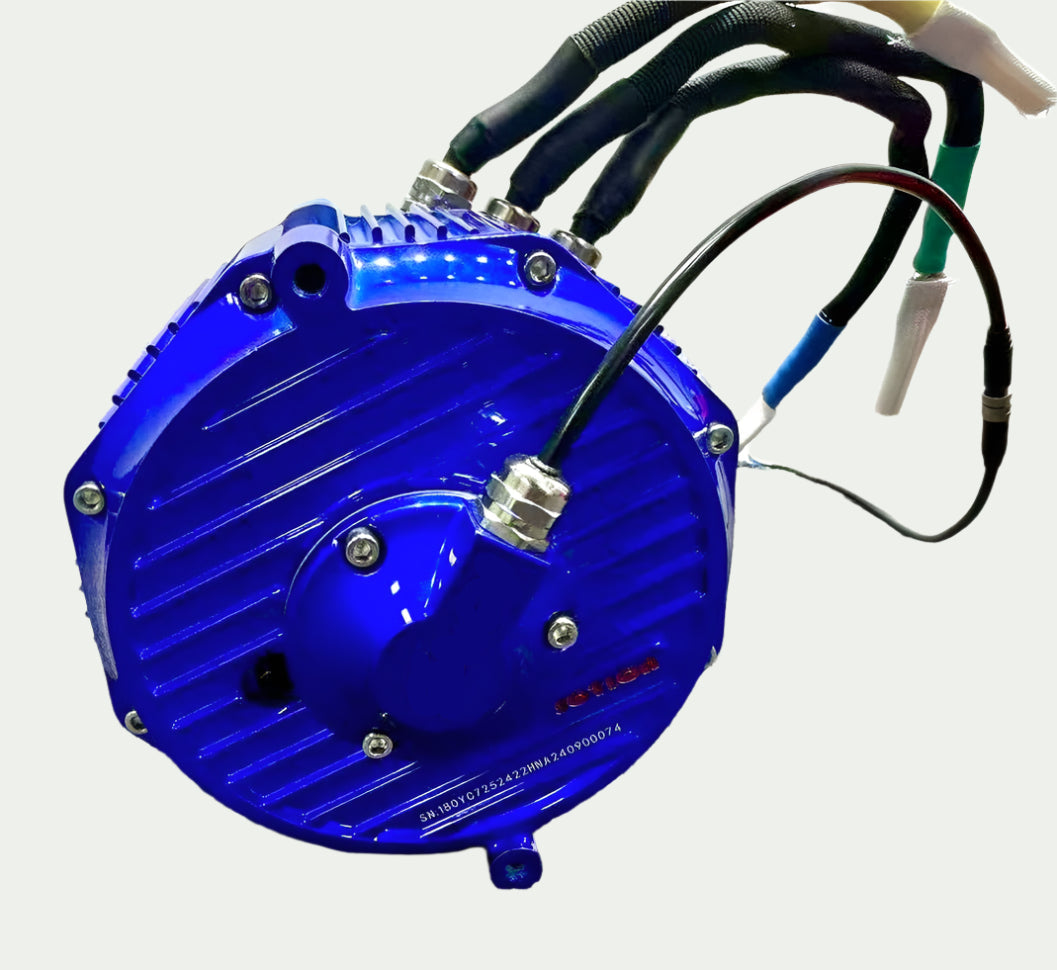

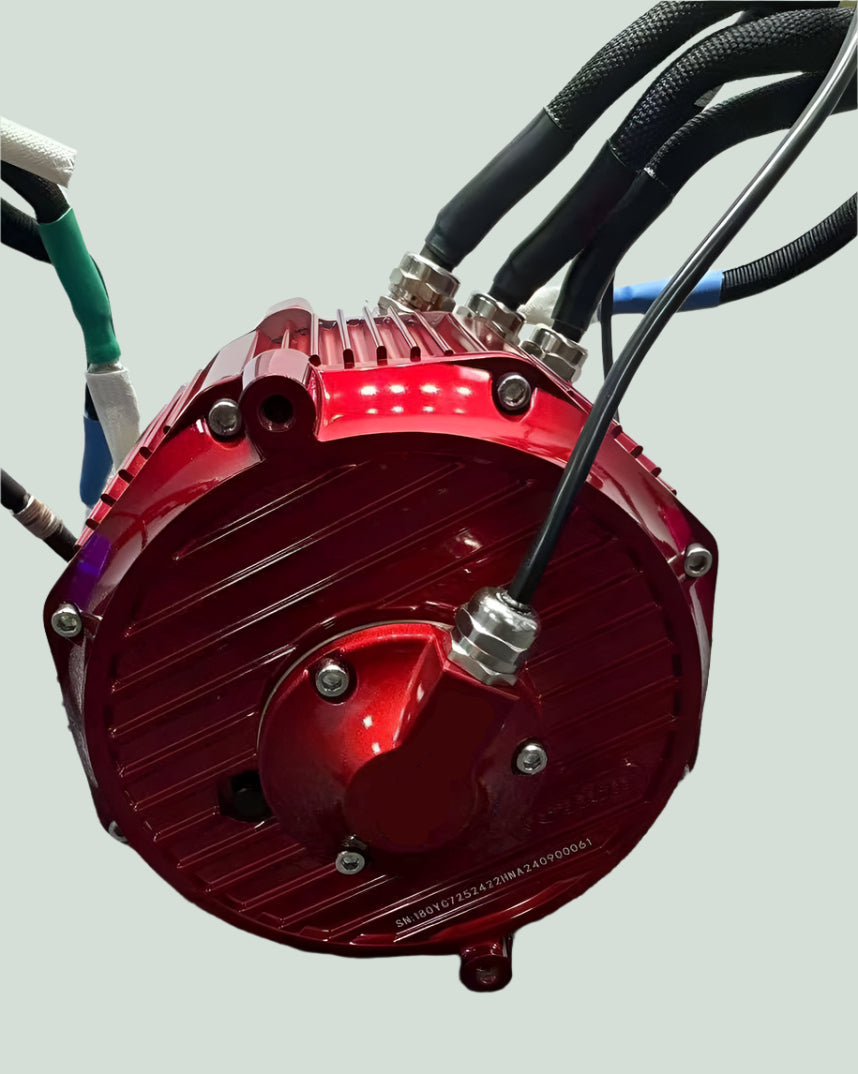

Sotion motor GTS01 for E-Ride Pro, 79-Bike, Surron, Segway, and Talaria X3.
The Sotion race motor is one of the most powerful and robust motors ever to hit the market for e-moto.
Specs:
PEAK POWER = 40KW
CONTINUOUS POWER = 20KW
RATED TORQUE = 19Nm
PEAK TORQUE = 70NM
MAX EFFICIENCY = > 93%
STABLE ROTOR RPM = 10000RPM
MOTOR CONFIGURATION = 5 poles
SENSING METHOD = Hall/ ENCODER
MAX PHASE CURRENT = 1300A
CONTINUOUS CURRENT = 500A IP67
RATED VOLTAGE = 96V
